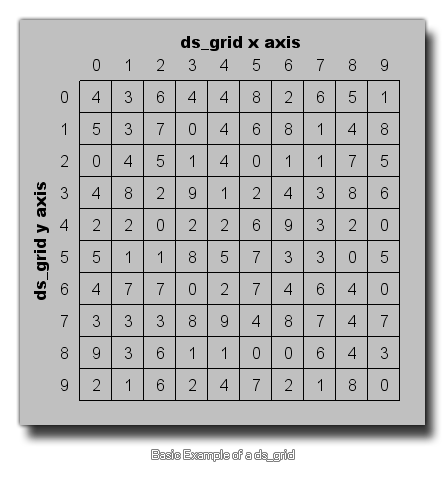

A ds_grid is basically a type of two-dimensional array. You define the grid by setting its integer width and height, which then sets the total number of "cells" within the grid (the width and height multiplied) and these cells are then used to hold different data values (real numbers or strings).

This type of structure allows you to set and retrieve the value of cells in the grid by giving the x and y index of it (which starts with 0 for both the x and the y axis and goes up to the width - 1 and the height -1). But you can also set the value in specific grid regions, add single values, and retrieve the sum, maximum, minimum, and mean value over a given region, making this data structure the most versatile of all those available to you.

When accessing DS grid data structures, you should always try to use integer values for the cell position, and all non-integer indices will be floored by GameMaker Studio 2 if you do not. If that is not what you require, then you will need to do the rounding yourself previously before passing the index that you wish to check.

The following functions exist that deal with DS grids.

1. ds_grid_create

2. ds_grid_destroy

3. ds_grid_width

4. ds_grid_height

5. ds_grid_resize

6. ds_grid_clear

7. ds_grid_set

8. ds_grid_set_disk

9. ds_grid_set_grid_region

10. ds_grid_set_region

11. ds_grid_shuffle

12. ds_grid_sort

13. ds_grid_get

14. ds_grid_get_max

15. ds_grid_get_mean

16. ds_grid_get_min

17. ds_grid_get_sum

18. ds_grid_get_disk_max

19. ds_grid_get_disk_mean

20. ds_grid_get_disk_min

21. ds_grid_get_disk_sum

22. ds_grid_add

23. ds_grid_add_region

24. ds_grid_add_disk

25. ds_grid_add_grid_region

26. ds_grid_multiply

27. ds_grid_multiply_disk

28. ds_grid_multiply_region

29. ds_grid_multiply_grid_region

30. ds_grid_value_exists

31. ds_grid_value_disk_exists

32. ds_grid_value_x

33. ds_grid_value_y

34. ds_grid_value_disk_x

35. ds_grid_value_disk_y

36. ds_grid_copy

37. ds_grid_read

38. ds_grid_write


Apart from these specific functions you can all use an expression (called an accessor) to add or modify the contents of your ds_grid. This accessor looks similar to a 2D array with the following syntax:

grid_index[# xpos, ypos]

You can find more information, plus examples, from from the GML Overview page on Accessors.
